Nanofiltration (NF) is a pressure-driven membrane separation process that falls between ultrafiltration (UF) and reverse osmosis (RO) in terms of pore size and molecular weight cutoff (MWCO). The typical MWCO of NF membranes ranges from 200 to 1000 Da, making them suitable for the separation of small organic molecules, multivalent ions, and low-molecular-weight solutes. NF membranes are widely used in a variety of applications, including water treatment, food and beverage processing, pharmaceutical and biotechnology industries, and chemical processing.
NF membranes can be made from a variety of materials, including polymers, ceramics, and metals. In this article, we will discuss the different types of NF membranes based on their material composition and fabrication method.

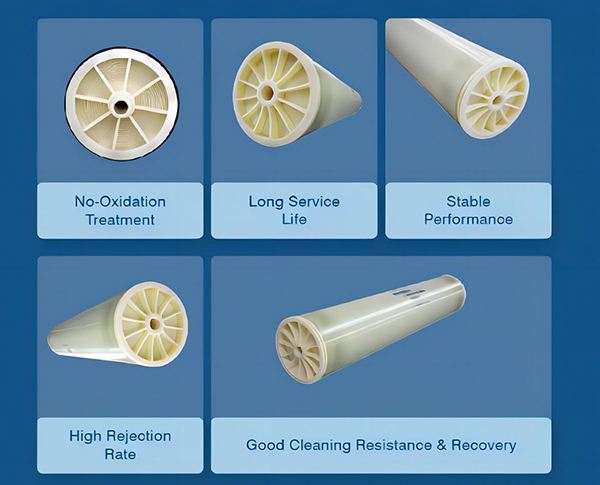

8 Inch Nanofiltration Membrane 500 Series NF-500-400
Polymer-based NF membranes are the most commonly used type of NF membrane due to their cost-effectiveness, flexibility, and ease of fabrication. Polymeric NF membranes can be made from a variety of materials, including polyamide, polysulfone, polyethersulfone, polyvinylidene fluoride, and cellulose acetate. These membranes are usually fabricated by phase inversion or interfacial polymerization methods, which involve the formation of a polymer film on a porous support layer. The performance of polymer-based NF membranes can be enhanced by modifying their surface chemistry or introducing functional groups to improve their selectivity and fouling resistance.
Ceramic-based NF membranes are made from inorganic materials such as alumina, titania, zirconia, or silica. These membranes have excellent mechanical strength, thermal stability, and chemical resistance, making them suitable for high-temperature and harsh chemical environments. Ceramic NF membranes are usually fabricated by sol-gel, phase inversion, or electrospinning methods. The main disadvantage of ceramic-based NF membranes is their high cost and limited flexibility, which restricts their use to specific applications.
Carbon-based NF membranes are a relatively new type of membrane that is attracting attention due to their unique properties, such as high permeability, selectivity, and stability. Carbon NF membranes can be made from a variety of carbon-based materials, including carbon nanotubes, graphene oxide, and activated carbon. These membranes are usually fabricated by filtration or dip-coating methods, which involve the deposition of a carbon layer on a porous support layer. Carbon-based NF membranes have potential applications in water treatment, gas separation, and energy storage.
Metal-based NF membranes are made from metals such as stainless steel, nickel, or copper. These membranes have high mechanical strength, chemical resistance, and thermal stability, making them suitable for high-pressure and high-temperature applications. Metal NF membranes are usually fabricated by electroforming or vapor deposition methods, which involve the deposition of a metal layer on a porous support layer. Metal-based NF membranes have potential applications in the petrochemical and pharmaceutical industries.
In conclusion, nanofiltration membranes are a versatile and promising technology that can be used in a wide range of applications. The choice of NF membrane type depends on the specific application requirements, such as pore size, selectivity, stability, and cost-effectiveness. Polymer-based NF membranes are the most commonly used type of membrane due to their cost-effectiveness, while ceramic-based NF membranes are suitable for high-temperature and harsh chemical environments. Carbon-based NF membranes have unique properties, such as high permeability, selectivity, and stability, while metal-based NF membranes have high mechanical strength, chemical resistance, and thermal stability.
If you want to know more information about nanofiltration membranes, please contact us. We will provide professional answers.
