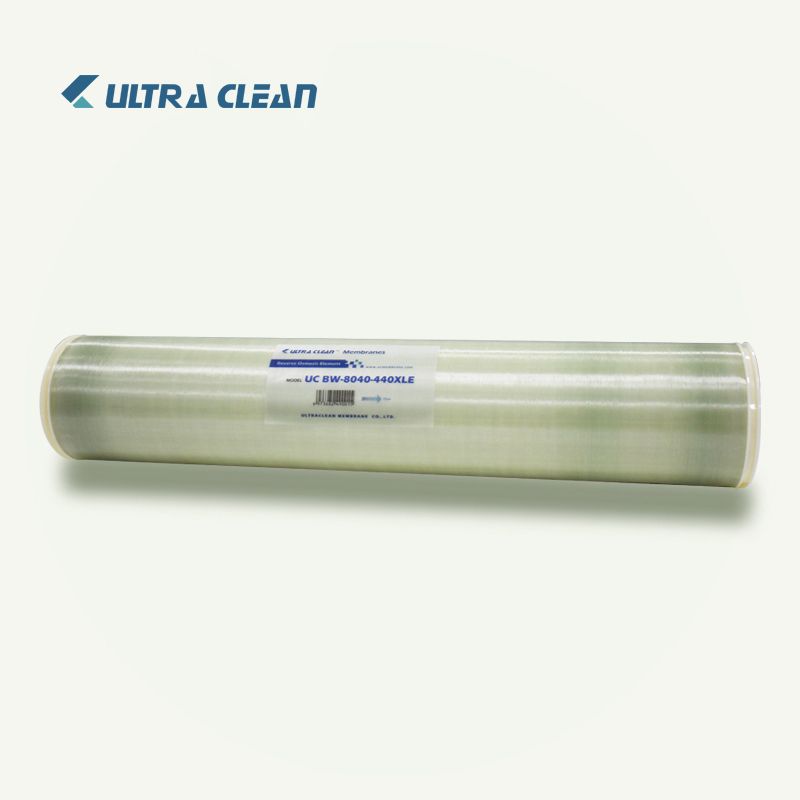

BWRO Membrane Extra Low Energy Series BW-8040-440XLE

BW RO membrane elements are mainly used for brackish water desalination. They provide excellent, stable and consistent membrane performance for industrial water treatment systems.

Product Description

UltraClean XLE series reverse osmosis membranes change the surface properties and chemical properties of the membrane by changing the formulation and production process conditions of the bottom membrane and composite membrane, improving the specific surface area and hydrophilicity, and maximizing the membrane flux. It is suitable for municipal water treatment. It is one of the reverse osmosis membrane elements with the highest water production and the lowest operating pressure in the membrane industry. The total cost of assembling the system with this element is the lowest, which can greatly improve the operating economy of the reverse osmosis system. as the most. A new generation of ultra-low energy consumption and high-performance reverse osmosis membrane elements, its operating pressure is about 1/2 that of ordinary brackish water reverse osmosis membrane elements, and the desalination rate can reach 99%. The ultra-low energy series is available in 8-inch and 4-inch sizes.

Performance Specification

Effective Membrane Area
ft²(m²)
Stablized Rejection
Rate(%)
Minimum Rejection
rate(%)
Flux
gpd(m³/d)
440 (41)99.098.012650 (48)


Test conditions: inlet pressure 0.69 MPa (100 psi); inlet temperature 25°C (77°F); inlet water quality 500ppm NaCl; inlet pH 8; recovery 15%.

Operating and Cleaning Limits

Maximum Operating Pressure41 bar (600 psi)
Maximum Operating Temperature45°C (113°F )
Maximum Element Pressure Drop1.0 bar (15psi)
pH Range Continuous Operation2-11
pH Range Short-Term Cleaning1-13
Maximum Feed SDI(SDI15)5.0
Free Chlorine Tolerance< 0.1 ppm

Notes

Permeate flow for individual elements may vary ±15 percent from the value specifed.

Active membrane area guaranteed ±4%.

Stabilized salt rejection is generally achieved within 24-48 hours of continuous use; depending upon feedwater characteristics and operating conditions.
