UltraClean UC NF500 series nanofiltration membrane elements have the characteristics of extremely high flux, high salt rejection, high retention of divalent ions and good passing performance of monovalent ions, achieving high water production and moderate removal performance.
Product Description
UltraClean UC NF500 series nanofiltration membrane elements have the characteristics of extremely high flux, high salt rejection, high retention of divalent ions and good passing performance of monovalent ions, achieving high water production and moderate removal performance. , can effectively cut off molecular weight above 300~500D. Organic matter, with excellent decolorization performance. The element utilizes the latest element manufacturing techniques to minimize filter dead space and bypass. Suitable for reuse of reclaimed water, municipal water, etc. Available in 4" and 8" sizes.
Product Highlights
Excellent removal of salts
Suitable for removing TOC and THM precursors
Salt removal under ultra-low pressure and low energy consumption
Membrane Performance Specification
| Effective Membrane Area ft²(m²) | Stablized Rejection Rate(%) | Flux gpd(m³/d) |
| 400(37) | ≥90%(MgSO4) | 13,200 (50.0) MgSO4 |
Test conditions: inlet pressure 0.48 MPa (70 psi); inlet temperature 25°C (77°F); inlet water quality 2,000 ppm MgSO4, inlet pH 8; recovery 15%.
Application
● Pure water system
● Chemical RO filtration
● Desalination of brackish water
● Food and beverage wastewater
● Power plant boiler make-up water
● Medical reverse osmosis filtration system

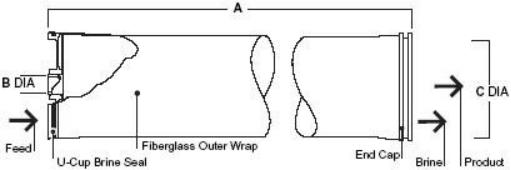

Membrane Specification
| A inch(mm) | B inch(mm) | C inch(mm) |
| 40 (1016) | 1.125 (29) | 7.9 (201) |
Operating and Cleaning Limits
| Maximum Operating Pressure | 41 bar (600 psi) |
| Maximum Operating Temperature | 45°C (113°F ) |
| Maximum Element Pressure Drop | 1.0 bar (15psi) |
| pH Range Continuous Operation | 2-11 |
| pH Range Short-Term Cleaning | 1-13 |
| Maximum Feed SDI(SDI15) | 5.0 |
| Free Chlorine Tolerance | < 0.1 ppm |
Permeate flow for individual elements may vary ±15 percent from the value specifed.
Active membrane area guaranteed ±4%.
Stabilized salt rejection is generally achieved within 24-48 hours of continuous use; depending upon feedwater characteristics and operating conditions.
